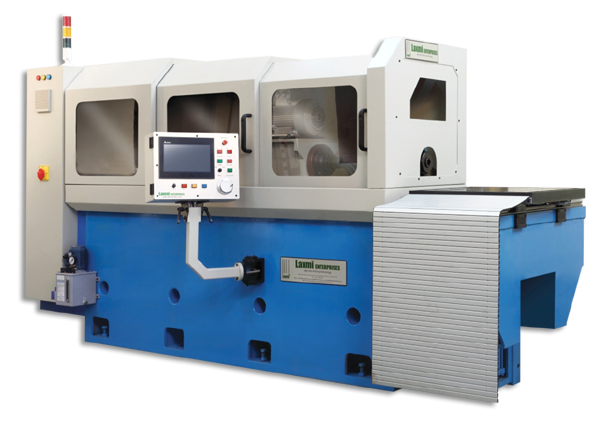

3 Axis Gun Drilling Machine
- Drilling Range : Dia 4 mm – Dia 25 mm
- Drilling Depth : 1000 mm
- Max. Spindle Speed : 500 – 5000 rpm
- High Pressure Coolant System with filtration
| Model | GLE XY 600 | GLE XY 1000 |
|---|---|---|
| Drilling Dia Range | 5 mm – 20 mm | 6 mm – 30 mm |
| Drilling Depth | 600 mm | 1000 mm |
| No. of Spindle | Single | Single |
| Spindle Power (kW) | 3.7 | 5.5 |
| Spindle Speed Range | 500 – 5000 rpm | 500 – 5000 rpm |
| Drill Feed Range (mm/min) | Variable | Variable |
| Rapid Travel | 4000 mm/min | 4000 mm/min |
| X Axis Travel | 500 mm | 800 mm |
| Y Axis Travel | 250 mm | 300 mm |
| Z Axis Travel | 1000 mm | 1500 mm |
